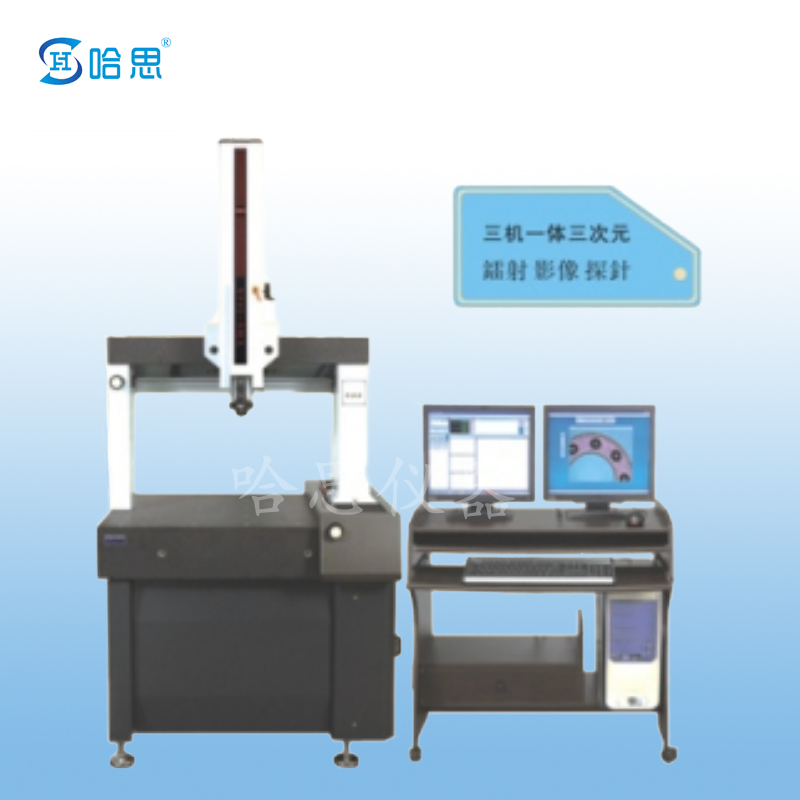

CMM
Product performance characteristics introduction:
The advanced all-aluminum technology of the CMM, the beam and Z-axis are made of hard anodized aviation aluminum alloy, and the temperature consistency is excellent; and the quality of the moving parts and the inertia of the measuring machine during high-speed operation are reduced to ensure high-speed and high-speed operation. precision.
All three axes use high-precision European imported grating scales, and the system resolution can reach 0.078um; at the same time, one end is fixed and one end is free to expand and contract, which reduces the deformation of the grating scale and ensures linear expansion and contraction when temperature changes.
The X-direction adopts the patented technology of precise 60° triangular beam. Compared with the rectangular beam, the center of gravity is lower, the mass-to-rigidity ratio is the best, and the movement is more reliable.
The Y-axis adopts an integral dovetail guide rail, which reduces the weight of the machine and effectively eliminates the movement torsion, ensuring the measurement accuracy and stability.
The Z direction adopts the patented pneumatic balance technology and adopts the flexible suspension system, which avoids the interference problem between the axial movement and the transmission system, and improves the accuracy and long-term stability of the measuring machine.
The IDC-I control system specially built by Croma, 21 error space correction technologies and automatic adjustment functions are used to ensure the dynamic performance and measurement accuracy of the machine.
The software is the industry benchmark PC-DMISu BASIC (/PC-DMIS PREMIUM), which is powerful, easy to learn and efficient.
Classification of measuring methods of three-coordinate measuring instruments:
1. Contact probe to measure CMM (the most commonly used and most commonly used);
2. Image composite three-coordinate measuring instrument;
3. Laser composite three-coordinate measuring instrument (mainly used in product measurement and reverse scanning);
We will provide the most suitable equipment according to the customer's product characteristics and measurement requirements.
Simple technical parameters:
Measuring range (mm): 500×600×400
Indication error (μm): 3.0+L/250
Dimensions (mm): 1046×958×2235
Maximum load (kg): 500
