Product introduction:

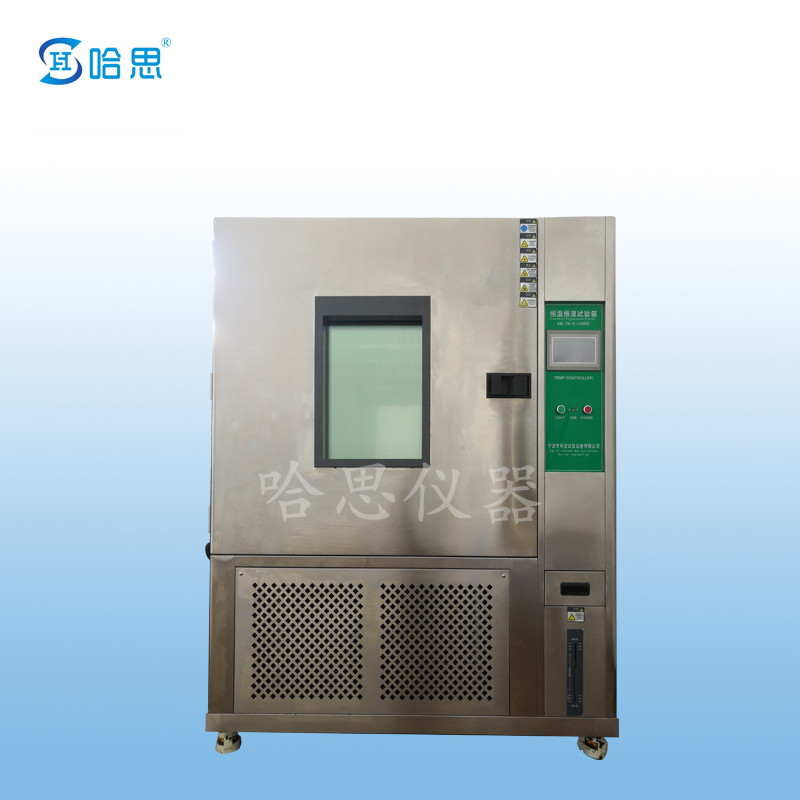

The high and low temperature test chamber is used to test the performance of materials in various environments and to test the heat resistance, cold resistance and dry resistance of various materials. It is suitable for testing the quality of electronic, electrical, communication, instrument, vehicle, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.

Compliance with standards: GB/T5170.5, GB/T10586, GB/T2423.1 Test A, GB/T2423.2 Test B, GB/T2423.3 Test Ca, GB/T2423.4.

Specifications:

temperature range:

G:-20℃～+150℃ Z:-40℃～+150℃ D:-70℃～+150℃

technical parameter:

Control stability: temperature ±0.5℃

Distribution uniformity: temperature ±2.0℃

Heating rate: 3°C/min (about 25 minutes from -40°C to 30°C) non-linear no-load

Cooling rate: 1°C/min (about 40 minutes from 30°C to -40°C) non-linear no-load

Control System:

Control system: It adopts the LCD touch-type TEMI880 temperature controller imported from South Korea, and forms an electrical control system with electrical components such as Schneider from France, Fuji from Japan, and Shihlin from Taiwan.

product structure:

Inner box material: SUS #304 mirror stainless steel plate

Outer box material: SUS #304 stainless steel plate or cold-rolled steel plate with paint

Insulation material: rigid Polyurethane foam + glass wool

Cooling System:

Refrigeration system and compressor: In order to ensure the cooling rate and minimum temperature requirements of the test chamber, the test chamber adopts a binary cascade air-cooled refrigeration system composed of a set of imported compressors.

The compressor adopts the fully hermetic "Taikang" compressor imported from France or the semi-hermetic "Bitzer" compressor imported from Germany.
