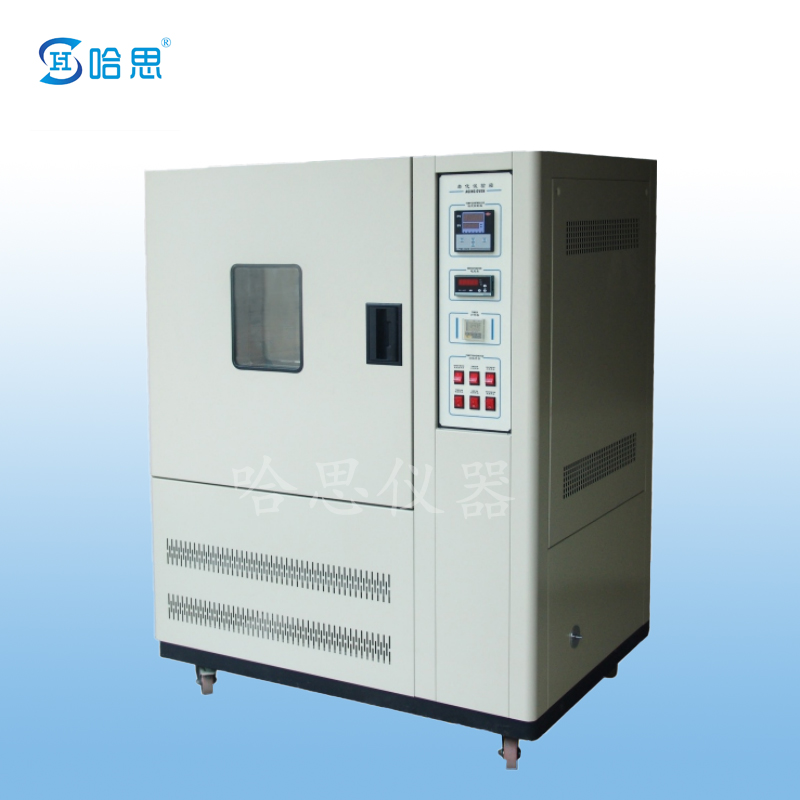

Natural ventilation aging box
Product introduction:
The natural ventilation aging box is used to study the heating change of rubber, plastic, insulator or coated test piece after being heated to a specified temperature for a certain period of time, so as to evaluate the aging resistance of the sample. It can also be used for thermal extension, high temperature pressure, heating deformation, ball pressure and other tests. The machine is equipped with a motor-driven turntable, and the function of hot air circulation can ensure uniform temperature distribution.
Natural ventilation aging box in line with GB, VDE and other test standards.
The main parameters:
1. Studio: 40*50*40cm; can be customized.
2. Electric heating power: 2kw, with heating selection mode;
3. Intelligent PID control, with self-tuning function, instrument accuracy: 0.1℃;
4. Temperature uniformity: ≤2℃;
5. High temperature: RT～300℃;
6. Test piece rotation speed: 5～10r.p.m;
7. Rotary motor power: 1/4HP;
8. Stainless steel inner tank and outer box are cold-rolled and sprayed or stainless steel;
9. Double-layer stainless steel compartment, single-layer stainless steel round turntable;
10. The glass observation window and the internal lighting lamp can easily observe the changes of the test sample;
11. Natural ventilation rate: 8 to 30 times/hour;
12. With ultra-high temperature protection function, it can effectively protect the safety of equipment;
14. Weight: about 100kg;
15. Power supply: 220V±10%, 50Hz
