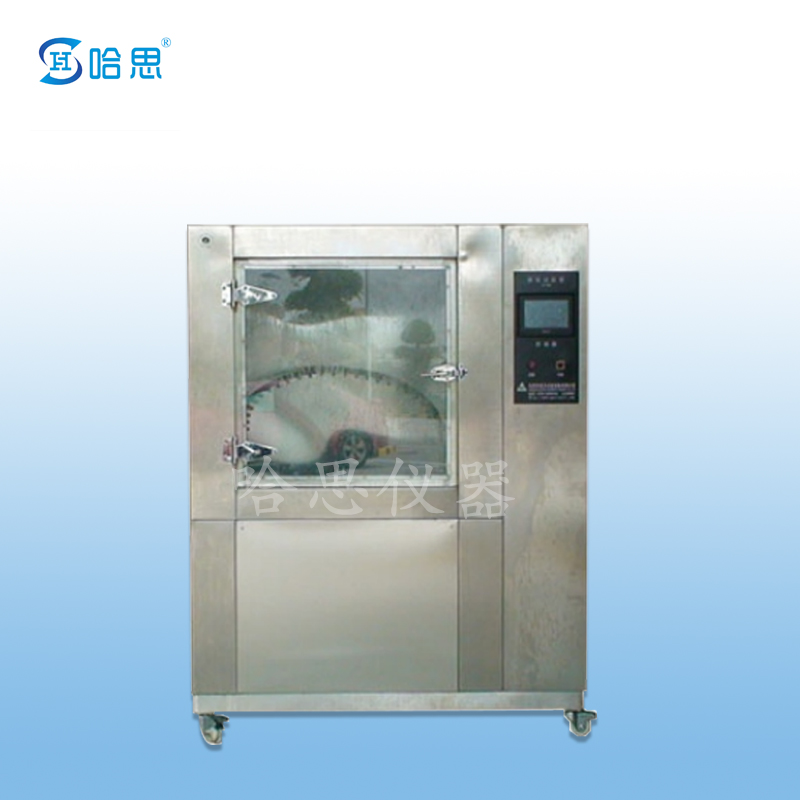

rain test chamber
Product name: rain test chamber
Product Model: HS-XLY-512
Product introduction:
The rain test box is mainly suitable for the protection test and detection of external lighting, signal devices and automobile lamps and lanterns in scientific research institutions such as electronic electrician, aerospace, military industry.
technical parameter:
1. The radius of the water spray ring is 375 or 500mm
2. Water pipe diameter φ16mm
3. Nozzle diameter φ0.4mm
4. Aperture spacing 50mm
5. Swing tube pressing width ±45°, ±60°, ±90°, ±180° (theoretical value)
6. The speed of the test bench is 1r/min and can also be adjusted without adjustment
7. Controller Imported frequency modulation frequency converter.
8. Time controller Imported programmable time computer integrated controller
9. Water pressure control flow meter.
10. Observation surface: large-area visualization tempered glass door.
11. Water supply system Water storage tank, booster pump.
12. Safety protection Leakage, short circuit, motor overheating.
13. Power requirements: AC380(±10%)V/50HZ three-phase five-wire system.
Box structure:
1. The shell material of the box is made of high-quality stainless steel plate with hairline treatment, and the material of the inner tank is made of stainless steel light plate;
2. Large-area visible glass door, easy to observe the condition of the tested sample in the test box;
3. The bottom of the test box adopts high-quality fixed PU movable wheel, which is convenient for users to move;
4. With 270-degree swing tube and 360-degree rotating rod water spray device;
5. Sample stage with adjustable speed;
Control System:
1. Programmable controller to complete the time and sequence control of the entire system;
2. The imported frequency converter is used to control the speed to effectively ensure that the test runs according to the standard;
