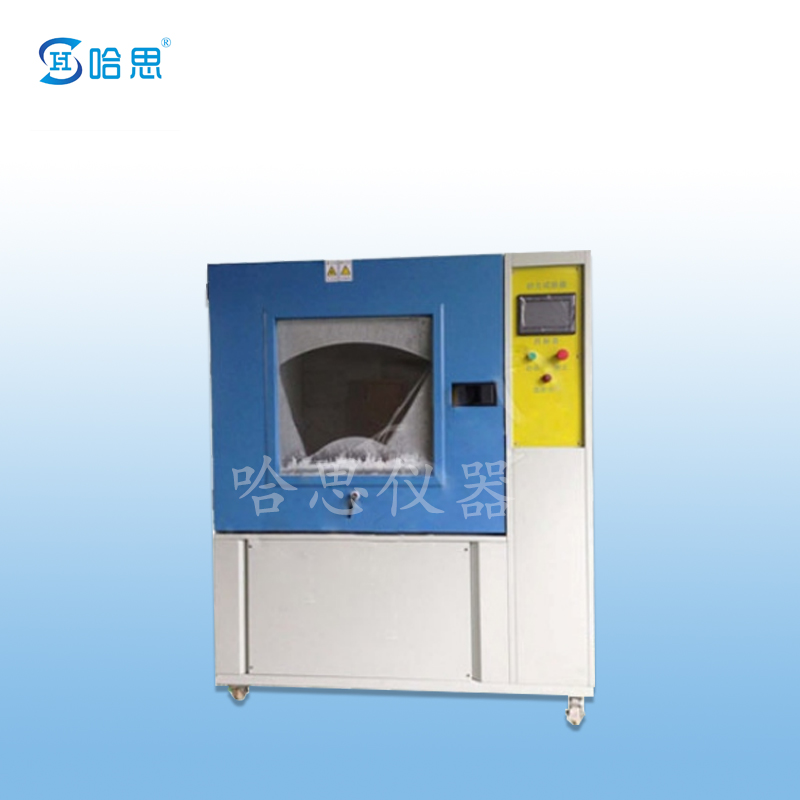

Sand and dust test chamber
Name: Sand and Dust Test Chamber
Model: HS-SC-512
Product introduction:
The sand and dust test chamber is suitable for the test of electrical and electronic products, automobile and motorcycle parts, and seals in the sand and dust environment to prevent sand and dust from entering the seals and housings. In order to test the performance of electronic and electrical products, automobile and motorcycle parts and seals in the use, storage and transportation of sand and dust environment.
Standard dust level:
IP0 no protection no special protection
IP1 prevents the intrusion of objects larger than 50mm Prevents the human body from accidentally touching the internal parts of the lamp Prevents the intrusion of objects larger than 50mm in diameter
IP2 prevents the intrusion of objects larger than 12mm and prevents fingers from touching the internal parts of the lamp
IP3 prevents the intrusion of objects larger than 2.5mm Prevents the intrusion of tools, wires or objects with a diameter larger than 2.5mm
IP4 prevents the intrusion of objects larger than 1.0mm Prevents the intrusion of mosquitoes, insects or objects with a diameter larger than 1.0
IP5 dustproof can not completely prevent dust intrusion, but the amount of dust intrusion will not affect the normal operation of the lamp
IP6 dustproof completely prevent dust intrusion
Features:
The shell of the equipment is made of cold-rolled steel plate electrostatically sprayed, the inner tank is made of high-quality stainless steel, and the overall appearance is beautiful and generous. There is a large-area observation window and a manual wiper device in the middle of the box door, which can easily see the test condition of the test piece during the test process.
The main controller of the equipment adopts intelligent digital temperature controller, user-friendly design operation method, easy to learn and use, and the operation of instruments of different functional grades is compatible with each other. The input adopts a digital correction system, with built-in non-linear correction tables for commonly used thermocouples and thermal resistances, and the measurement is accurate and stable.
With position adjustment and AI artificial intelligence adjustment functions, 0.2-level accuracy, multiple alarm modes.
The device has a timing function.
Equipment heating adopts stainless steel fin heating tube.
The dust blowing cycle and vibration cycle of the whole equipment can be adjusted, and it is equipped with a timer for the total test.
Inner box size:
512L(800*800*800mm)
800L(800*1000*1000mm)
1500L(1000*1500*1000mm)
2592L(1200*1800*1200mm)
technical parameter:
1. Temperature range: RT～45℃
2. Dry talc that can pass through a square-hole sieve with a sieve hole of 75um and a wire diameter of 50um.
3. Dust concentration: 2~4kg/m3
4. Sand blowing time: adjustable from 1S to 99H
5. Vibration time: adjustable from 1S to 99H
6. Timing range: 0～99H
